Description

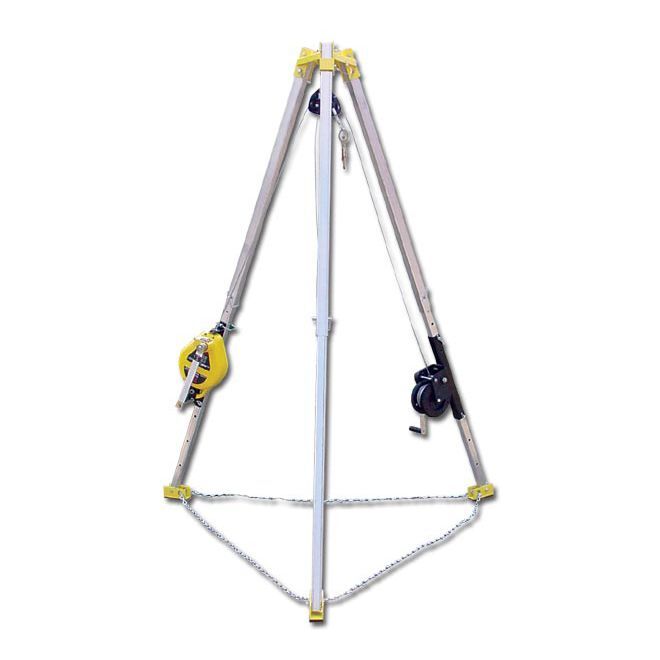

Introducing the confined space 7′ TP7 Aluminum Tripod, 50′ Galvanized Wire Rope MW50G Work Winch, and 50′ Galvanized Steel R50G 3-Way Rescue Unit from French Creek Production. This tripod kit meets all applicable ANSI and OSHA standards. Made in the U.S.A.
7′ TP7 Aluminum Tripod:
This tripod was made to withstand 5000 lbs. of vertical load, yet is lightweight and portable, offering quick and easy single person setup. TP Series tripods feature adjustable/locking aluminum legs, safety chain, non-slip rubber safety shoes, and two attachment points on the steel head.
MW50G Work Winch with 50′ Galvanized Wire Rope:
The MW50G winch comes with raising and lowering options as well as a friction break to prevent the unit from free-wheeling when under a load. Made of a strong steel frame and drum, the unit includes a #45 pulley, and a carabiner that attaches to the tripod. The gear ratio is 5.1:1 and the personnel lb capacity is 400lbs.
50′ Galvanized Steel R50G 3-Way Rescue Unit:
This is a self-retracting lifeline which may be raised and lowered for rescue and retrieval. If a worker falls, the unit will instantly lock up and arrest the fall. The system may then be used in winch mode, raising or lowering the worker to safety. The R50G’s friction brake prevents the crank handle from free-wheeling while under a load. The unit is manufactured of a durable, light cast aluminum housing, and includes a mounting bracket for the tripod or French Creek’s Davit Systems, a #45 split pulley, and carabiner for attaching the lifeline to the tripod.
Part Numbers:
S50G-M7
(Included) TP7 – 7′ TP7 Aluminum Tripod
(Included) MW50G 50′ Galvanized Wire Rope Work Winch
(Included) R50G 50′ Galvanized Steel 3-Way Rescue Unit
